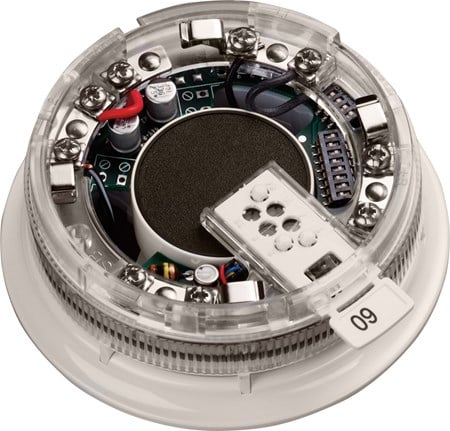

XP95 Sounder VID Base (Red Flash)

45681-331APO

The Sounder Visual Indicator Base is a loop-powered sounder and visual indicator combined with a standard Intelligent Mounting Base. It is used to signal a fire alarm in enclosed areas.

Technical specification
General
Warranty
10 year
Mechanical
Colour
White
Materials housing
Polycarbonate
Product depth
38mm
Product diameter
115mm
Weight
160g
Product depth
1.5in
Product diameter
4.53in
Conformance
Approvals
CPR
Electrical
Terminal functions L2
+L2 Loop in & out positive, double terminal
Terminal functions L1 in
-L1 in Loop in & out, double terminal
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity sensitive
Battery powered
No
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
300μA
Quiescent current tested at
24V dc
Supply voltage (min)
17V dc
Supply voltage (max)
28V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Loop powered
Yes
Environmental
Storage temperature (min)
-20°C
Storage temperature (max)
60°C
Storage temperature
-20 to 60°C
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
Operating temperature
-20 to 60°C
IP rating Value
IP21C
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
