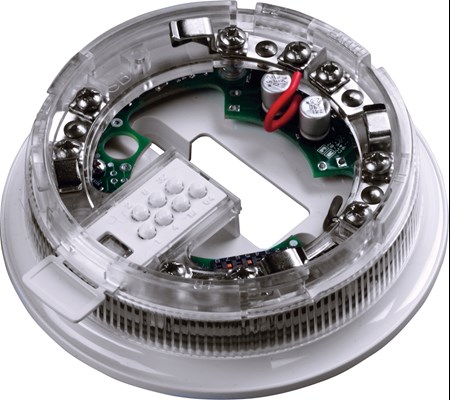

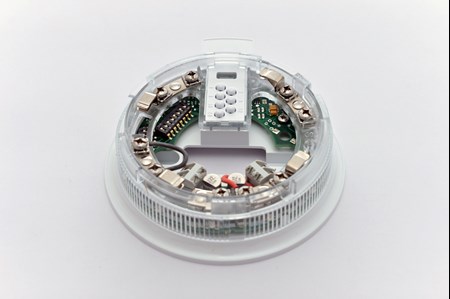

XP95 VID Base (Red Flash) - Isolating

45681-333APO

The Visual Indicator Base is a loop-powered visual indicator combined with a standard Intelligent Mounting Base. It is used to signal a fire alarm in enclosed areas. The visual indicator base can be used with either a detector fitted or with a cap as a stand-alone alarm device.

Technical specification
General
Default Variant
No
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Performance
Flash rate
1Hz
Mechanical
Colour
White
Materials housing
Polycarbonate
Product depth
31mm
Product diameter
115mm
Weight
109g
Product depth
1.22in
Product diameter
4.53in
Conformance
Standards
EN 54-17
Approvals
CPR
Electrical
Polarity
L1 & L2 are polarity sensitive
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
300μA
Quiescent current tested at
24V dc
Supply voltage (min)
17V dc
Supply voltage (max)
28V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
Operating temperature
-20 to 60°C
IP rating Value
IP21D
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
