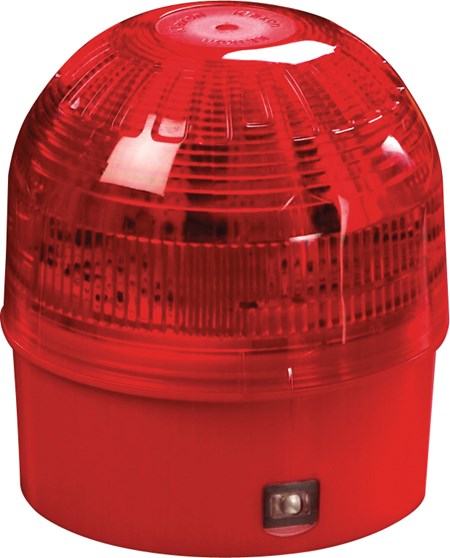

XP95 Open-Area VID - Red Body (Red Flash) - Isolating

55000-009APO

The XP95 Open-Area VID has been developed for use in situations where there is a risk that sounders will not be heard.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Audio Visual Signalling
  • Analogue Addressable
Mechanical
Colour
Red
Materials housing
Polycarbonate
Product depth
97.5mm
Product diameter
104mm
Weight
205g
Product depth
3.84in
Product diameter
4.09in
Electrical
Polarity
L1 & L2 are polarity sensitive
Power-up surge current
1.2mA
Maximum power-up time
<1 second
Quiescent current
333μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
-10 to 55°C
IP rating Value
IP65
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
