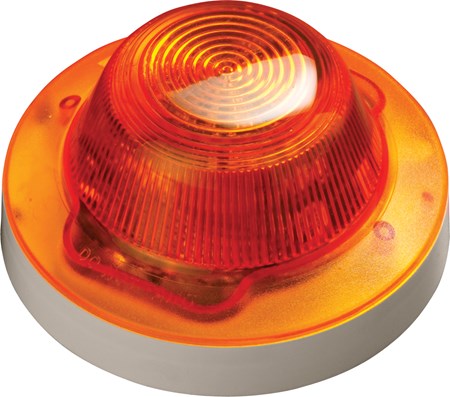

XP95 Open-Area VID - Amber Body (Amber Flash)

55000-879APO

The XP95 Open-Area VID is a local-area visual indicator designed for indoor use. The visual indicator has been developed as a supplement to sounders for use in situations where there is a risk that sounders will not be heard.

Technical specification
General
Warranty
10 year
Electrical
Power-up surge current
1mA
Quiescent current
150μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Mechanical
Materials housing
Polycarbonate
Product depth
38mm
Product diameter
115mm
Weight
140g
Product depth
1.5in
Product diameter
4.53in
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
Operating temperature
-20 to 60°C
IP rating Value
IP23D
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
