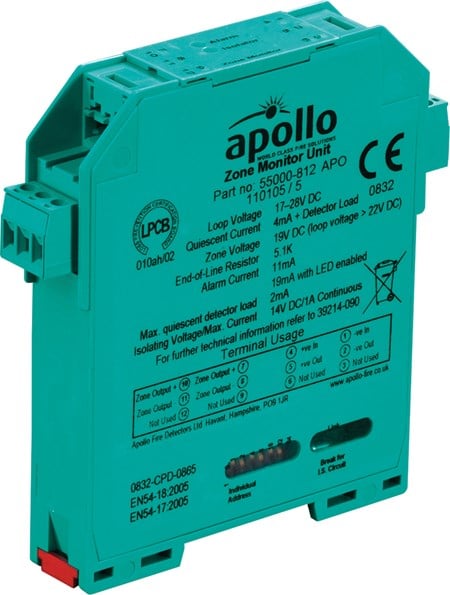

XP95 DIN-Rail Zone Monitor Module - Isolating

Name: XP95 DIN-Rail Zone Monitor Module - Isolating
Brand: Discovery
SKU: 55000-812APO

55000-812APO

The XP95 DIN-Rail Zone Monitor Module is used to power and control a zone of up to 20 Apollo Series 65, Orbis or equivalent fire detectors and report their status to the fire control panel.

EN 54-17 & EN 54-18 Certified
Allows conventional detection zones to be easily added to addressable systems
Allows DIN-Rail mounting
XP95, Discovery compatible

Technical specification

General	Warranty 10 year
Mechanical	Colour Green Weight 95g Product length 110mm Product width 107mm Product depth 20mm Product length 4.33in Product width 4.21in Product depth 0.79in
Conformance	Standards EN 54-17 EN 54-18 Approvals FG LPCB CPR
Electrical	Supply voltage (max) 28V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 28V dc Maximum power-up time 4 seconds
Environmental	Humidity 0% to 95% (no condensation or icing) Humidity Note no condensation or icing Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -20 to 70°C Operating temperature (max) 70°C Operating temperature (min) -20°C IP rating Value IP20 Operating temperature -4 to 158°F Operating temperature (max) 158°F Operating temperature (min) -4°F
