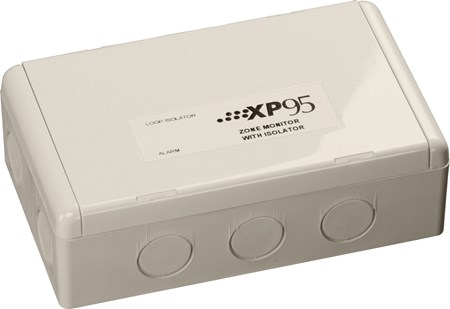

XP95 Zone Monitor Module - Isolating

55000-845APO

The XP95 Zone Monitor Module is used to power and control a zone of up to 20 Apollo Series 65, Orbis or equivalent fire detectors and report their status to the fire control panel.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Weight
230g
Materials housing
Polycarbonate
Product length
90mm
Product width
150mm
Product depth
48mm
Product length
3.54in
Product width
5.91in
Product depth
1.89in
Conformance
Approvals
  • VdS
  • FG
  • LPCB
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Power-up surge current
3.5mA
Maximum power-up time
150ms
Stabilization time on power up
4s
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-20 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-20°C
IP rating Value
IP54
Operating temperature
-4 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-4°F
