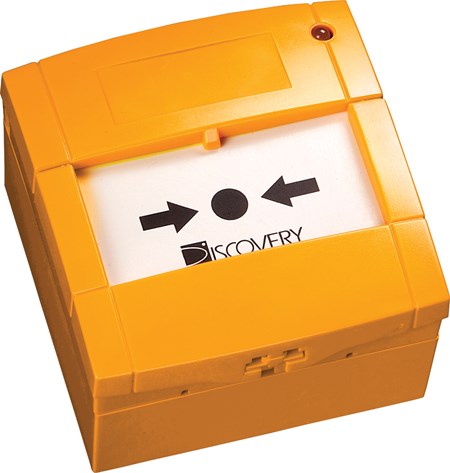

Discovery Manual Call Point - Yellow

58100-927APO

A seven-segment DIL switch enables addressing of each call point at commissioning stage. When operated, the manual call point interrupts the polling cycle for a fast response. Bi-coloured LEDs indicate isolate and normal conditions.

Technical specification
General
Warranty
10 year
Default Variant
No
Website Categories
  • Manual Call Points
  • Analogue Addressable
Wireless
No
Mechanical
Colour
Yellow
Weight
180g
Materials housing
Polycarbonate
Product length
88mm
Product width
88mm
Product depth
59mm
Detection principle
Operation of a switch.
Key type
KAC Manal Call Point test & reset key
Product length
3.46in
Product width
3.46in
Product depth
2.32in
Performance
Analogue value nominal
16
Electrical
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Protocol voltage
5 to 9V peak to peak
Power-up surge current
1mA
Quiescent current
100μA
Polarity
L1 & L2 are polarity sensitive
Loop powered
Yes
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-70°C
Operating temperature (max)
70°C
Operating temperature
-70 to 70°C
IP rating Value
IP24D
Operating temperature
-94 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-94°F
