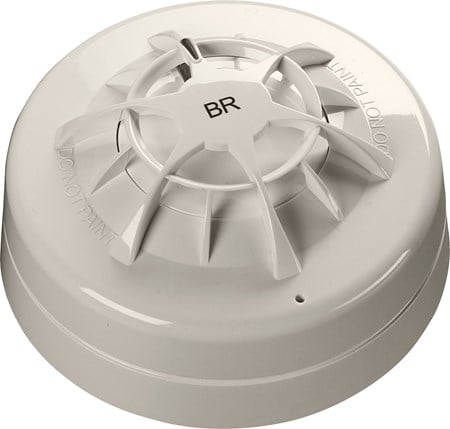

Orbis Marine Heat Detector (BR) - Flashing LED

ORB-HT-41015-MAR

The Orbis Marine Heat Detector uses a single thermistor to sense the air temperature around the detector.

Technical specification
General
Warranty
10 year
Applications
  • Dusty environments
  • Marine
Website Specialist Applications
  • Marine
  • Offshore
Performance
Heat classification
BR
Mechanical
Colour
White
Weight
70g
Materials housing
Polycarbonate
Product length
36mm
Product diameter
97mm
Product length
1.42in
Product diameter
3.82in
Conformance
Approvals
  • BV
  • LR
  • DNV.GL
  • CCS
  • KRS
  • ABS
  • MED
Electrical
Maximum power-up time
<20 seconds
Quiescent current
95μA
Quiescent current tested at
24V dc
Polarity
L1 & L2 are polarity sensitive
Minimum 'detector active' voltage
6V
Holding voltage
5 to 33V
Holding voltage (max)
33V
Holding voltage (min)
5V
Minimum voltage to light alarm LED
5V
Alarm reset voltage
<1V
Alarm reset time
1s
Alarm load
600Ω
Sampling frequency
Once every 4 seconds
Environmental
Humidity (max)
98% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 98% (no condensation or icing)
IP rating Value
IP23D
