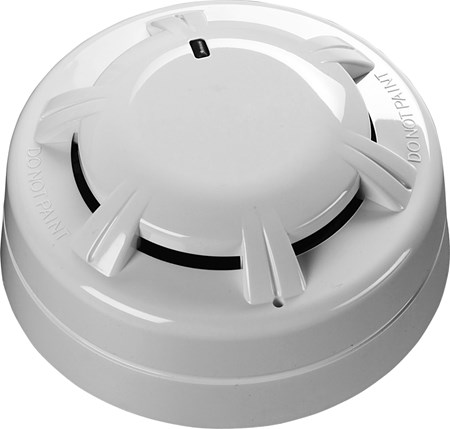

Orbis Optical Smoke Detector

ORB-OP-12001-APO

The Orbis Optical Smoke Detector operates on the well-established light scatter principle. The sensing technology used is radically different from previous optical detectors and significantly reduces false alarms.

Technical specification
General
Warranty
10 year
Applications
  • B&Bs/guest houses
  • Bedrooms
  • Dusty environments
  • Retail
  • Small to medium buildings
  • Restaurants
Fire Type
Slow burning, smouldering fires
Mechanical
Colour
White
Sensor configuration
Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier.
Weight
75g
Materials housing
Polycarbonate
Product length
31mm
Product diameter
97mm
Detection principle
Photo-electric light scattering.
Product length
1.22in
Product diameter
3.82in
Conformance
Approvals
  • VdS
  • SBSC
  • LPCB
  • FG
  • BOSEC
  • CPR
Performance
Chamber type
Chevron
Electrical
Maximum power-up time
<20 seconds
Quiescent current
95μA
Quiescent current tested at
24V dc
Polarity
L1 & L2 are polarity sensitive
Sampling frequency
Once every 4 seconds
Minimum 'detector active' voltage
6V
Holding voltage
5 to 33V
Holding voltage (max)
33V
Holding voltage (min)
5V
Minimum voltage to light alarm LED
5V
Alarm reset time
1s
Alarm load
600Ω
Environmental
Humidity (max)
98% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP23D
Storage temperature (max)
70°C
Storage temperature (min)
-40°C
Storage temperature
-40 to 70°C
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
