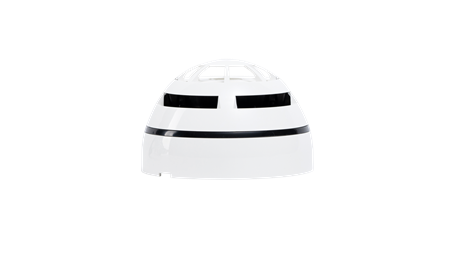

REACH Multi-Sensor Detector (Optical/Heat)

RW1000-700APO

The RW1000-700APO is a wireless addressable dual-optical and heat detection multisensor detector, offering both technologies for improved performance and high levels of false-alarm rejection.

Technical specification
General
Warranty
5 year
Mechanical
Colour
White
Weight
190g
Product width
70mm
Product diameter
110mm
Detection principle
  • Photo-electric light scattering.
  • Temperature sensitive resistance.
Product width
2.76in
Product diameter
4.33in
Conformance
Approvals
CPR
Wireless
Battery life
10Yrs
Battery type
Lithium
Downloads

This page uses Javascript you will need to switch on Javascript to view the page.

Approvals

This page uses Javascript you will need to switch on Javascript to view the page.

You may also wish to consider

  • REACH Heat Detector

    RW1000-400APO

    The RW1000-400APO is a wireless analogue addressable heat detector that can be configured as either rate-of-rise (A1R) or high temperature (BS) classification as specified in the EN 54-5. Multiple EN 54-5 classes (A1R and BS) can be chosen from configuration software or the keyboard/LCD interface during the link phase.

  • The RW1000-600APO is a wireless addressable optical smoke detector that utilised dual-optical smoke detection technology for improved performance; maintaining the highest levels of false-alarm rejection.
