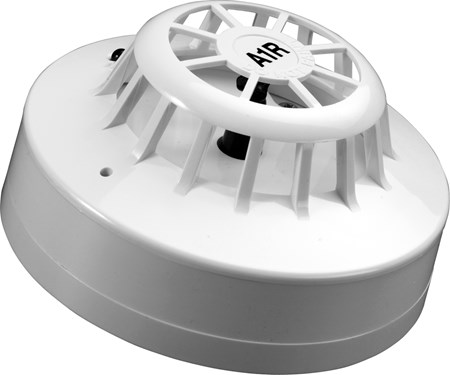

Series 65 Heat Detector (A1R)

55000-122APO

The Series 65 Heat Detector uses a dual thermistor network to monitor temperature.

Technical specification
General
Warranty
10 year
Applications
  • B&Bs/guest houses
  • Cafes
  • Dusty environments
  • Restaurants
  • Retail
  • Small to medium buildings
Default Variant
Yes
Website Categories
Conventional
Performance
Heat classification
A1R
Mechanical
Colour
White
Weight
80g
Materials housing
Polycarbonate
Product length
42mm
Product diameter
100mm
Product length
1.65in
Product diameter
3.94in
Conformance
Standards
EN 54-5
Approvals
  • CPR
  • FG
  • SBSC
  • VdS
  • BOSEC
  • LPCB
Electrical
Polarity
L1 & L2 are polarity insensitive
Holding voltage
6 to 6V
Holding voltage (max)
6V
Holding voltage (min)
6V
Minimum voltage to light alarm LED
12V
Alarm load
420Ω in series with 2V drop
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-20 to 90°C
Operating temperature (max)
90°C
Operating temperature (min)
-20°C
IP rating Value
IP23D
Storage temperature (max)
120°C
Storage temperature (min)
-30°C
Storage temperature
-30 to 120°C
Operating temperature
-4 to 194°F
Operating temperature (max)
194°F
Operating temperature (min)
-4°F
