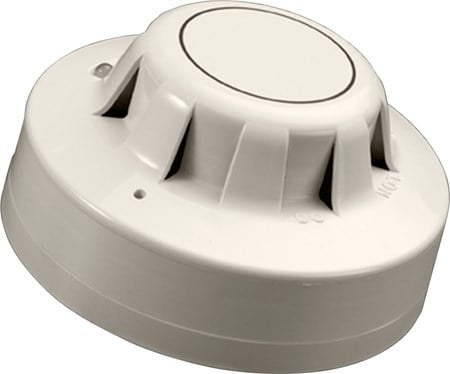

Series 65A Photoelectric Smoke Detector - Flashing LED

55000-326USA

The Series 65A Photoelectric Smoke Detector uses light sensing technology to “see” smoke entering the chamber. The external detector moulding is identical to that of the ionisation detector, and has an indicator LED which is clear in quiescent state and produces a red light in alarm.

Technical specification
General
Warranty
10 year
Applications
  • B&Bs/guest houses
  • Bedrooms
  • Cafes
  • Escape routes
  • Restaurants
  • Retail
  • Small to medium buildings
Fire Type
Slow burning, smouldering fires
Default Variant
No
Website Categories
Conventional
Website Specialist Applications
UL/ULC/FM
Mechanical
Colour
White
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
100g
Materials housing
Polycarbonate
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product diameter
3.94in
Conformance
Approvals
  • FM
  • MSFM
  • UL
  • ULC
  • CSFM
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
