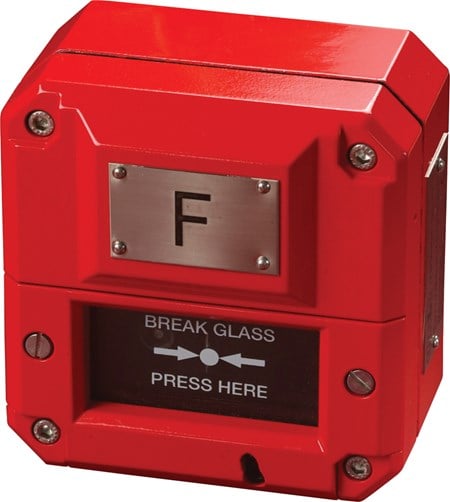

XP95 I.S. Manual Call Point - MEDC Style (Break Glass)

Name: XP95 I.S. Manual Call Point - MEDC Style (Break Glass)
Brand: XP95
SKU: 55000-960APO

This product is now obsolete

55000-960APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system. The Manual Call Point is suitable for use in areas where explosive atmospheres are, or may be, present.

Suitable for intrinsically safe and weatherproof applications
Suitable for use on Zones 2, 1 & 0
EN 54-11 Certified
Reports an alarm in under 0.2 seconds
Made of glass-reinforced polyester
XP95 & Discovery compatible

Technical specification

General	Warranty 3 year
Mechanical	Colour Red Weight 240g Product length 126mm Product width 120mm Product depth 67mm Detection principle Operation of a switch. Key type DIN Manal Call Point reset key Product length 4.96in Product width 4.72in Product depth 2.64in
Conformance	Approvals BASEEFA
Electrical	Protocol voltage (max) 9V Protocol voltage (min) 5V Protocol voltage 5 to 9V peak to peak Quiescent current 300μA Quiescent current tested at 24V dc
Environmental	IP rating Value IP66
