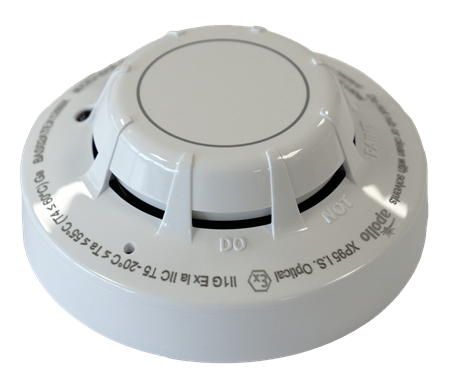

XP95 I.S. Optical Smoke Detector

55000-640APO

The XP95 I.S. Optical Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.

Technical specification
General
Warranty
10 year
Applications
  • Escape routes
  • Hazardous areas
  • Medium to large buildings
  • Offshore platforms
  • Refineries
Fire Type
Slow burning, smouldering fires
Mechanical
Colour
White
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
105g
Materials housing
Polycarbonate
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product diameter
3.94in
Conformance
Approvals
  • BASEEFA
  • PESO (CCoE)
  • IECEx
  • DNV.GL
  • CPR
  • ESC
  • MED
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Quiescent current
340μA
Quiescent current tested at
24V dc
Polarity
L1 & L2 are polarity sensitive
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
