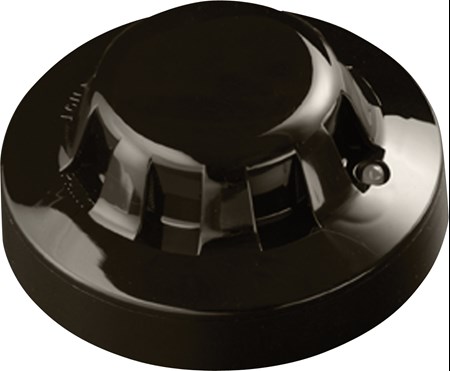

XP95 Optical Smoke Detector - Black

55000-660APO

The XP95 Optical Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.

Technical specification
General
Warranty
10 year
Applications
  • Escape routes
  • Hotels
  • Offices
  • Restaurants
  • Retail
  • Bedrooms
  • Medium to large buildings
Fire Type
Slow burning, smouldering fires
Default Variant
Yes
Website Categories
Analogue Addressable
Mechanical
Colour
Black
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
105g
Materials housing
Polycarbonate
Materials terminals
Nickel plated stainless steel
Product length
42mm
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product length
1.65in
Product diameter
3.94in
Conformance
Standards
EN 54-7
Approvals
  • CPR
  • CSIRO
  • LPCB
Performance
Analogue value nominal
25
Analogue value (- tolerance)
7
Analogue value (+ tolerance)
7
Analogue value
25 +7/-7
Alarm level analogue value
55
Chamber type
Chevron
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
1mA
Maximum power-up time
4 seconds
Status indicator - Alarm
Red
Status indicator - Fault
Off
Quiescent current
340μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Terminal functions L2
+L2 Loop in & out positive, double terminal
Terminal functions L1 in
-L1 in Loop in & out, double terminal
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity insensitive
Battery powered
No
Sampling frequency
Once per second
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
IP rating Value
IP44
Storage temperature (max)
80°C
Storage temperature (min)
-30°C
Storage temperature
-30 to 80°C
Effect of wind speed
None
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
