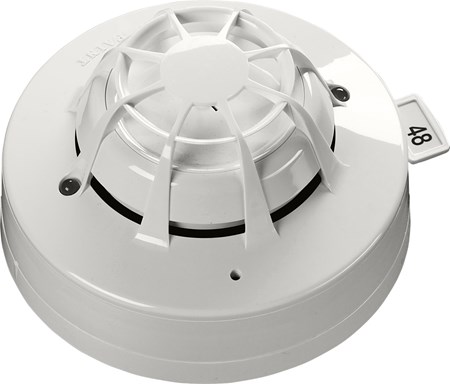

XP95 Multi-Sensor Detector (Optical/Heat)

55000-885APO

The XP95 Multi-Sensor Detector combines independent optical smoke and temperature sensors for better fire detection in areas with deceptive phenomena.

Technical specification
General
Warranty
10 year
Applications
  • Bedrooms
  • Hotels
  • Medium to large buildings
  • Offices
  • Retail
  • Restaurants
Fire Type
Fast and slow burning fires
Default Variant
Yes
Website Categories
Analogue Addressable
Performance
Heat classification
A1R
Analogue value nominal
23
Analogue value (- tolerance)
0
Analogue value (+ tolerance)
4
Analogue value
23 +4/-0
Chamber type
Chevron
Mechanical
Colour
White
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
105g
Materials housing
Polycarbonate
Materials terminals
Nickel plated stainless steel
Product length
50mm
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product length
1.97in
Product diameter
3.94in
Product height (wo/base)
50mm
Conformance
Standards
EN 54-7
Approvals
  • BOSEC
  • KRS
  • SBSC
  • VdS
  • LPCB
  • CPR
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
1mA
Maximum power-up time
10 seconds
Quiescent current
500μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity insensitive
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
IP rating Value
IP44
Storage temperature (max)
80°C
Storage temperature (min)
-30°C
Storage temperature
-30 to 80°C
Operating temperature (min)
-4°F
Operating temperature (max)
140°F
Operating temperature
-4 to 140°F
