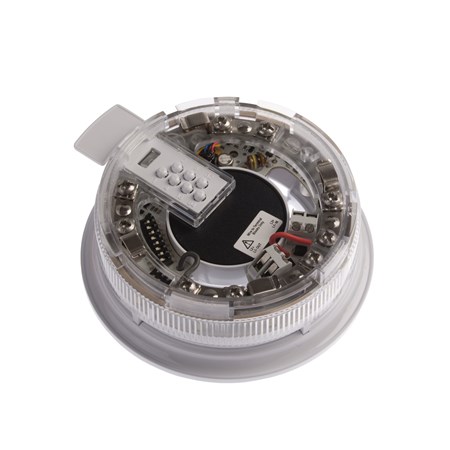

XP95 Sounder VAD Base Cat. O (White Flash) - Isolating

45681-705APO

XP95 Sounder VAD Base with integral isolated mounting base. Designed for indoor use.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Analogue Addressable
  • Visual Alarm Devices
Mechanical
Colour
White
Weight
168g
Materials housing
Polycarbonate
Product length
38mm
Product diameter
115mm
Product length
1.5in
Product diameter
4.53in
Conformance
Approvals
  • CPR
  • FG
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Maximum power-up time
1 second
Quiescent current
350μA
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Loop powered
Yes
