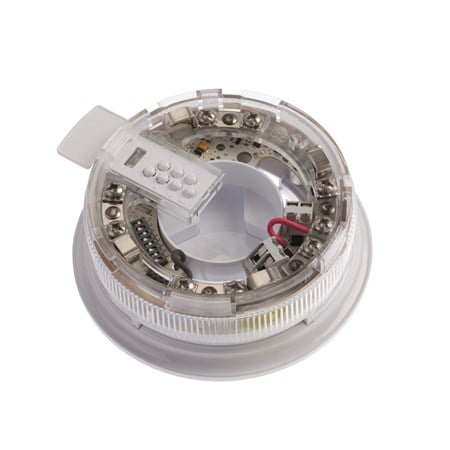

XP95 VAD Base Cat. O (White Flash) - Isolating

45681-709APO

The XP95 VAD Base incorporates a loop-powered VAD with a standard mounting base. It is used to signal a visual fire alarm warning in enclosed areas.

Technical specification
General
Default Variant
Yes
Warranty
10 year
Website Categories
  • Analogue Addressable
  • Visual Alarm Devices
Mechanical
Colour
White
Weight
156g
Materials housing
Polycarbonate
Product length
38mm
Product diameter
115mm
Product length
1.5in
Product diameter
4.53in
Conformance
Approvals
  • CPR
  • FG
  • LPCB
  • VdS
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
9V
Protocol voltage
5 to 9V peak to peak
Maximum power-up time
1 second
Quiescent current
350μA
Quiescent current tested at
24V dc
Polarity
L1 & L2 are polarity sensitive
Loop powered
Yes
Environmental
IP rating Value
IP21C
