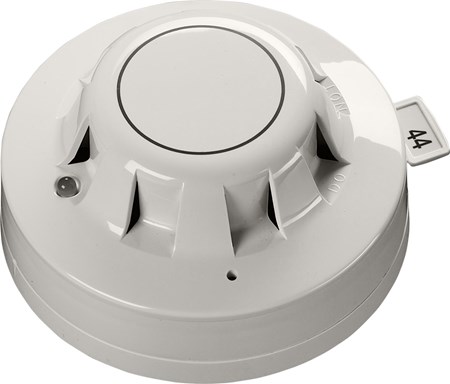

XP95A Photoelectric Smoke Detector

55000-650APO

The XP95A Photoelectric Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.

Technical specification
General
Warranty
10 year
Applications
  • Bedrooms
  • Escape routes
  • Hotels
  • Medium to large buildings
  • Offices
  • Retail
Fire Type
Slow burning, smouldering fires
Default Variant
Yes
Website Categories
Analogue Addressable
Website Specialist Applications
UL/ULC/FM
Associated Ranges
XP95A
Mechanical
Colour
White
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
105g
Materials housing
Polycarbonate
Product diameter
100mm
Product depth
42mm
Detection principle
Photo-electric light scattering.
Product depth
1.65in
Product diameter
3.94in
Conformance
Standards
EN 54-7
Approvals
  • FM
  • MSFM
  • SII
  • UL
  • ULC
Performance
Analogue value nominal
25
Analogue value (- tolerance)
7
Analogue value (+ tolerance)
7
Analogue value
25 +7/-7
Alarm level analogue value
55
Chamber type
Chevron
Electrical
Protocol voltage
5 to 9V peak to peak
Protocol voltage (max)
9V
Protocol voltage (min)
5V
Power-up surge current
1mA
Maximum power-up time
4 seconds
Status indicator - Alarm
Red
Status indicator - Fault
Off
Quiescent current
340μA
Quiescent current tested at
24V dc
Supply voltage (max)
28V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 28V dc
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity insensitive
Battery powered
No
Sampling frequency
Once per second
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-20 to 60°C
Operating temperature (max)
60°C
Operating temperature (min)
-20°C
IP rating Value
IP23D
Storage temperature (max)
80°C
Storage temperature (min)
-30°C
Storage temperature
-30 to 80°C
Effect of wind speed
None
Operating temperature
-4 to 140°F
Operating temperature (max)
140°F
Operating temperature (min)
-4°F
