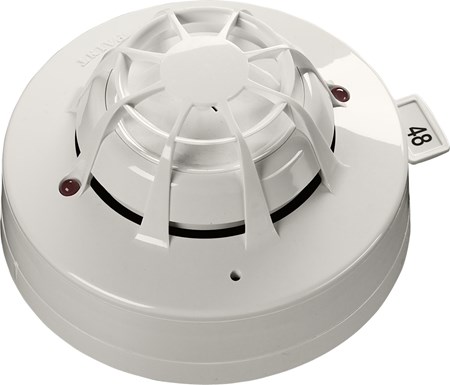

XP95A Multi-Sensor Detector (Photoelectric/Heat)

55000-886APO

The XP95A Multi-Sensor Detector combines independent photoelectric smoke and temperature sensors for better fire detection in areas with deceptive phenomena.

Technical specification
General
Warranty
10 year
Applications
  • Bedrooms
  • Car parks/loading bays
  • Warehouses
  • Clean rooms
  • Medium to large buildings
  • Offices
  • Retail
  • Hotels
Fire Type
Fast and slow burning fires
Default Variant
Yes
Website Categories
Analogue Addressable
Website Specialist Applications
UL/ULC/FM
Mechanical
Colour
White
Sensor configuration
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Weight
113g
Materials housing
Polycarbonate
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product diameter
3.94in
Product height (wo/base)
42mm
Conformance
Approvals
  • MSFM
  • UL
  • ULC
Electrical
Power-up surge current
1mA
Quiescent current
500μA
