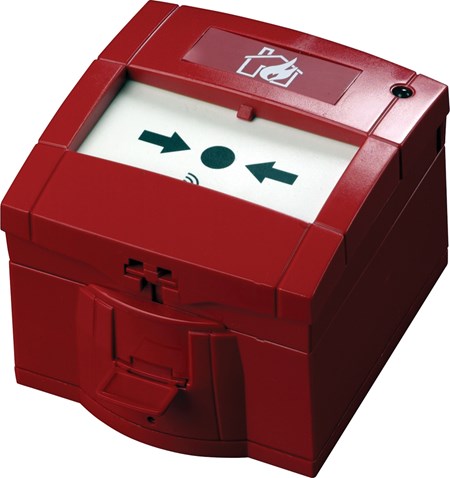

XPander Manual Call Point

XPA-MC-14006-APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Manual Call Points
  • Wireless
Mechanical
Colour
Red
Weight
374g
Materials housing
ABS
Product length
93mm
Product width
89mm
Product depth
72mm
Detection principle
Operation of a switch.
Key type
KAC Manal Call Point test & reset key
Product length
3.66in
Product width
3.5in
Product depth
2.83in
Conformance
Standards
EN 54-11
Approvals
  • FG
  • CPR
Wireless
Battery type
Alkaline
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Operating temperature (min)
-10°C
Operating temperature (max)
50°C
Operating temperature
-10 to 50°C
Operating temperature
14 to 122°F
Operating temperature (max)
122°F
Operating temperature (min)
14°F
