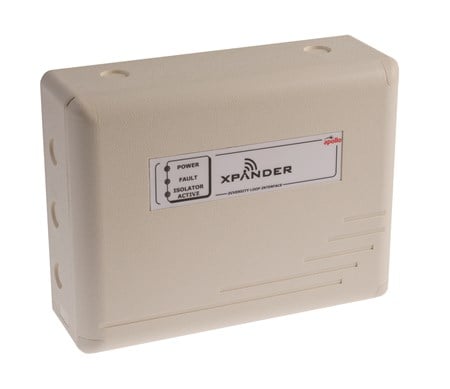

XPander Diversity Loop Interface Module

XPA-IN-14050-APO

The XPander Diversity Loop Interface Unit acts as the bridge between Apollo wired loops and XPander Wireless products. The XPander Diversity Loop Interface is loop-powered, no external power supply is required. Up-to 31 wireless XPander devices can be connected to a single XPander Loop Interface, with each device’s status reported to the wired fire control panel via XP95 protocol (compatible with Discovery & CoreProtocol). If more than 31 wireless devices are needed, up-to 5 Loop Interfaces can be installed onto the wired loop to increase the amount of wireless devices that can be used.

Technical specification
General
Warranty
10 year
Mechanical
Colour
White
Weight
950g
Materials housing
ABS
Product length
205mm
Product width
270mm
Product depth
85mm
Product length
8.07in
Product width
10.63in
Product depth
3.35in
Conformance
Standards
  • EN 54-17
  • EN 54-18
  • EN 54-25
Approvals
CPR
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-10 to 55°C
Operating temperature (max)
55°C
Operating temperature (min)
-10°C
Operating temperature
14 to 131°F
Operating temperature (max)
131°F
Operating temperature (min)
14°F
