XP95 Reflective Beam Detector (5-50m)

Name: XP95 Reflective Beam Detector (5-50m)
Brand: Discovery
SKU: 55000-268APO

This product is now obsolete and is replaced with the Intelligent Reflective Beam Detector - Auto-Aligning

55000-268APO

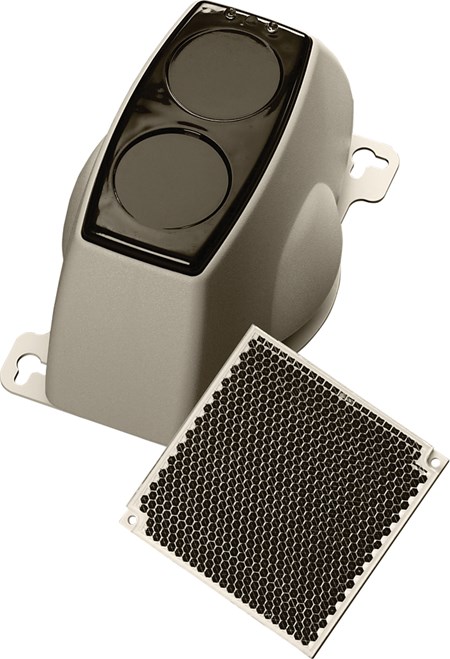

The XP95 Reflective Beam Detector differs from a traditional beam detector in that it is a single unit which houses a transmitter, a receiver and the control electronics.

Loop-powered
Compatible with Discovery and XP95 protocols
Incorporates a short-circuit isolator
Automatic drift compensation
Automatic reset following alarm or fault condition

Technical specification

General	Warranty 10 year Applications Churches Offices Warehouses
Performance	Operating distance (max) 50m Operating distance (min) 5m Operating distance 5 to 50m Alarm threshold 25% 2.5db Alarm threshold 35% 3.74db Alarm threshold 50% 6.02db
Mechanical	Colour Grey Weight 670g Materials housing ABS Product length 210mm Product width 130mm Product depth 120mm Product length 8.27in Product width 5.12in Product depth 4.72in
Conformance	Approvals CPD
Electrical	Supply voltage (max) 28V dc Supply voltage (min) 17V dc Supply voltage (Vmin-Vmax) 17 to 28V dc Loop powered Yes
Environmental	Humidity (max) 93% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 93% (no condensation or icing) Operating temperature -20 to 55°C Operating temperature (max) 55°C Operating temperature (min) -20°C IP rating Value IP50 Operating temperature -4 to 131°F Operating temperature (max) 131°F Operating temperature (min) -4°F
