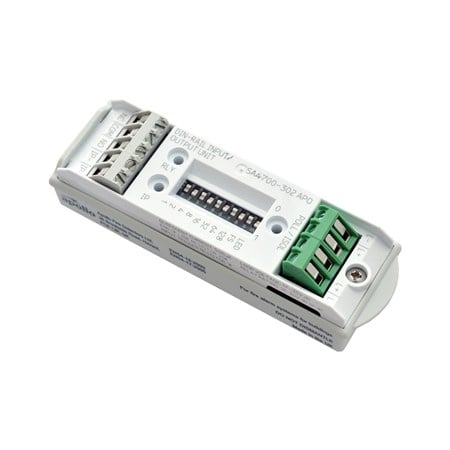

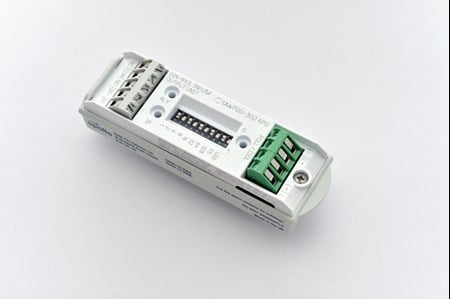

Intelligent DIN-Rail Input/Output Module

SA4700-302APO

The Intelligent DIN-Rail Input/Output Module is used to monitor single pole, volt free contact inputs and control relay output contacts.

Technical specification
General
Warranty
10 year
Default Variant
Yes
Website Categories
  • Interfaces
  • Analogue Addressable
Mechanical
Colour
White
Weight
49g
Product length
33mm
Product width
102mm
Product depth
33mm
Relay output contact rating
1A
Relay output rating tested at
30V ac
Product length
1.3in
Product width
4.02in
Product depth
1.3in
Conformance
Standards
  • EN 54-17
  • EN 54-18
Approvals
  • FG
  • LPCB
  • SBSC
  • VdS
  • BOSEC
  • CPR
Electrical
Protocol voltage (min)
5V
Protocol voltage (max)
13V
Protocol voltage
5 to 13V peak to peak
Quiescent current
500μA
Quiescent current tested at
24V dc
Supply voltage (max)
35V dc
Supply voltage (min)
17V dc
Supply voltage (Vmin-Vmax)
17 to 35V dc
Relay contact ratings
1A
Contact rating tested at
30V
Environmental
Humidity
0% to 95% (no condensation or icing)
Humidity Note
no condensation or icing
Humidity (max)
95% RH
Humidity (min)
0% RH
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
