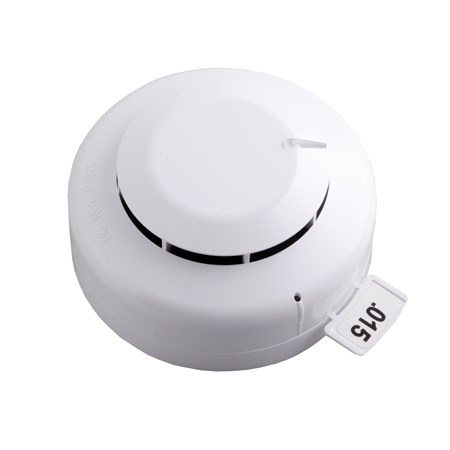

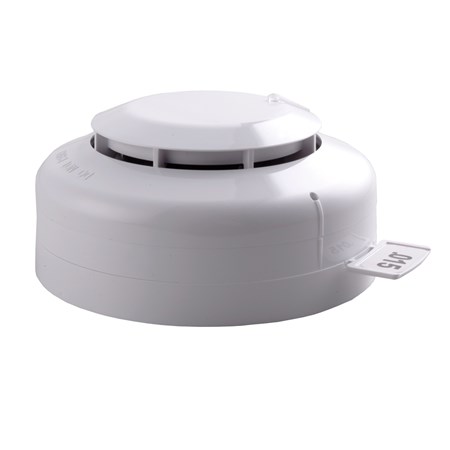

Soteria Optical Smoke Detector - Non-Isolating

SA5000-600APO

The Soteria Optical Smoke Detector uses advanced optical sensing technology, PureLight, providing advanced false alarm management and increased detector reliability.

Technical specification
General
Warranty
10 year
Applications
  • Escape routes
  • Hospitals
  • Restaurants
  • University campuses
  • B&Bs/guest houses
  • Bedrooms
  • Cafes
  • Offices
  • Retail
Fire Type
Slow burning, smouldering fires
Default Variant
Yes
Website Categories
Analogue Addressable
Mechanical
Colour
White
Finish
Gloss
Sensor configuration
Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier.
Weight
83g
Materials housing
Polycarbonate
Materials terminals
Tin plated stainless steel
Product diameter
100mm
Detection principle
Photo-electric light scattering.
Product diameter
3.94in
Conformance
Standards
EN 54-7
Approvals
  • LPCB
  • CPR
Performance
Analogue value nominal
23
Analogue value (- tolerance)
0
Analogue value (+ tolerance)
4
Analogue value
23 +4/-0
Alarm level analogue value
55
Chamber type
PureLight
Electrical
Protocol voltage
5 to 13V peak to peak
Protocol voltage (max)
13V
Protocol voltage (min)
5V
Power-up surge current
0.56mA
Status indicator - Alarm
Red
Status indicator - Fault
Flashing yellow
Quiescent current
300μA
Quiescent current tested at
24V dc
Terminal functions L2
+L2 Loop in & out positive
Terminal functions L1 in
-L1 in Loop (isolated) negative
Terminal functions L2 out
-L1 out Loop (isolated) negative
Terminal functions +R
+R Remote indicator positive connection
Terminal functions -R
-R Remote indicator negative connection
Polarity
L1 & L2 are polarity sensitive
Status indicator - Isolate
Yellow
Status indicator - Poll
Green
Sampling frequency
Once per second
Environmental
Humidity (max)
95% RH
Humidity (min)
0% RH
Humidity Note
no condensation or icing
Humidity
0% to 95% (no condensation or icing)
Operating temperature
-40 to 70°C
Operating temperature (max)
70°C
Operating temperature (min)
-40°C
IP rating Value
IP44
Effect of wind speed
None
Wind speed test
Tested up to 10m/s
Operating temperature
-40 to 158°F
Operating temperature (max)
158°F
Operating temperature (min)
-40°F
Downloads

This page uses Javascript you will need to switch on Javascript to view the page.

Approvals

This page uses Javascript you will need to switch on Javascript to view the page.

Accessories

XPERT 8 Cards are supplied with all XPERT 8 Mounting Bases. Using a coding guide Part No. 39214-481, pips are removed to set the address of theinserted detector.
